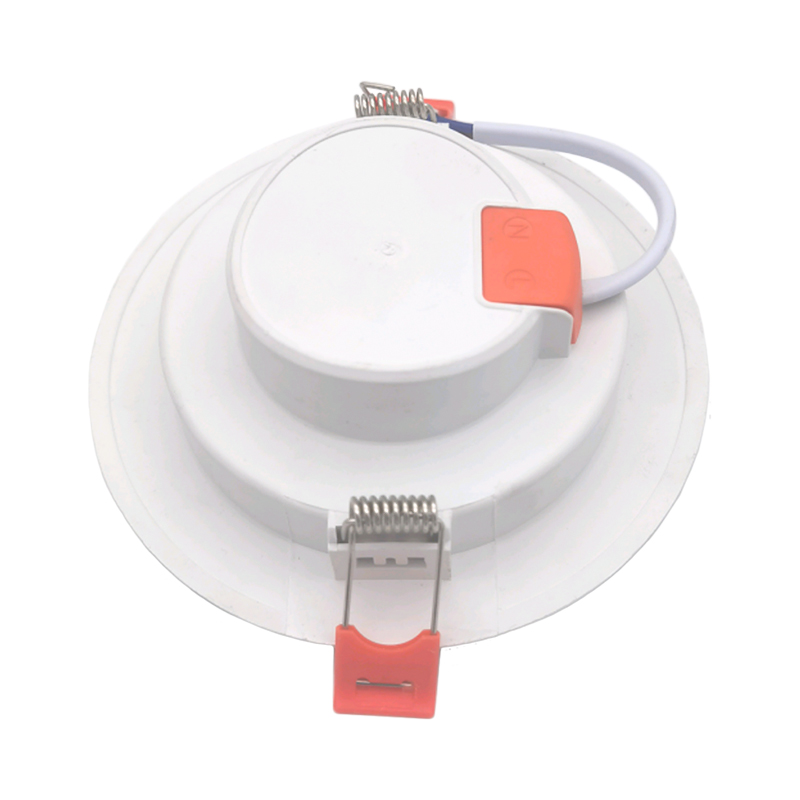

Down Light (PBT+aluminum ) Wholesale

Down Light (PBT+aluminum )

Down Light (PBT+aluminum )

  • Down Light (PBT+aluminum )
  • Down Light (PBT+aluminum )
Quote Now

Specification

Product Introduction:

●The shell is made of PC+plastic coated aluminum thermal conductive nylon material, with high strength; Surface resistance to high voltage, anti-static and safety regulations, corrosion resistance.

●LEDSMD light source is selected, which has high light efficiency, high color rendering, low light attenuation, and low energy consumption. According to customer needs, variable light, flicker light, neutral light, and white light can be controlled through a dial switch to reduce customer inventory.

●Scientific lighting design, suitable for small area floodlighting. Concealed downlight with regular openings and soft lighting. Eye protection.

●The dual chamber integrated design facilitates on-site installation and maintenance, simplifying on-site wiring.

●Scientific sealing structure design, dustproof performance.

●The selected power module has short-circuit, overvoltage, and overcurrent protection functions.

●The unique heat dissipation and ventilation method adopts conductive heat dissipation, which improves the service life of the components inside the electrical box.

●Angle: Adjustable angle

Spot downlight is suitable for indoor home decoration: lighting in restaurants, living rooms, corridors, shopping malls, hotels, KTVs, schools, non main lighting design scenes, and other places.

Rated voltage: 127-240V

Power: 5W, 7W, 9W, 12W, 15W

IP: 20

Type Products
description		 Lamp base
size
(mm) 		 Hole size  Watts(w) Lnput Power(v) Luminous flux(lm) Light efficiency(lm/w) PF Color temperature CRI Beam angle Warranty
(yrs)		 Driver CE Dimming MOQ Packing Measurment
pcs Ctn size(cm) Inside the box size Carton size/cm CBM G.W.
L W H
Down Light
With 7CM exposed wire, wire diameter≧0.24mm
(PBT+aluminum )		 2,5 inches Φ95*H42mm 70-75mm 5 220-240V 375 75  >0.5 3000
4000
6000		 80 120 2years NO √ / 2000 100 20 98*50*98mm 51 27 41 0.056457
2,5 inches Φ95*H42mm 70-75mm 7 220-240V 525 75  >0.5 3000
4000
6000		 80 120 2years NO √ / 2000 100 20 98*50*98mm 51 27 41 0.056457
3,5 inches Φ118*H42mm 90~95MM 9 220-240V 675 75  >0.5 3000
4000
6000		 80 120 2years NO √ / 2000 100 20 120*50*120mm 62 27 50 0.0837
3,5 inches Φ118*H42mm 90~95MM 12 220-240V 900 75  >0.5 3000
4000
6000		 80 120 2years NO √ / 2000 100 20 120*50*120mm 62 27 50 0.0837
4 inches Φ138*H42mm 110~115MM 15 220-240V 1125 75  >0.5 3000
4000
6000		 80 120 2years NO √ / 2000 50 40 140*50*140mm 72 27 30 0.05832
 6 inches Φ180*H43mm 140~160MM 18 220-240V 1350 75  >0.5 3000
4000
6000		 80 120 2years NO √ / 2000 40 50 182*50*182mm 52 38 38.4 0.0758784
8 inches Φ225*H44mm 180-200MM 20 220-240V 1500 75  >0.5 3000
4000
6000		 80 120 2years NO √ / 2000 40 50 227*50*227mm 52 47 47.4 0.1158456

About Company


Ningbo Ounuo Lighting Technology Co., Ltd.

Ningbo Ounuo Lighting Technology Co., Ltd.

We are a professional China Down Light (PBT+aluminum ) Suppliers and Wholesale Down Light (PBT+aluminum ) Factory. Our products have been exported to many countries from Europe to South America, Middle East, Africa and Southeast Asia, and we hope to sell to all over the world in the future.Welcome friends from all walks of life to visit our factory, guidance and business negotiations.

Take A Factory Tour   >>

Contact Us

Related Products

Qualification certificate

Latest News

All ArticlesNingbo Ounuo Lighting Technology Co., Ltd.

Industry Knowledge

What are the advantages of light source LEDSMD?
Down Light uses LEDSMD light source. As a light source in the lighting field, LEDSMD plays a vital role in modern lighting technology and has received widespread attention for its excellent characteristics. This surface mount LED is not just a light, but an innovative lighting solution that combines multiple advantages such as high energy consumption, excellent color reproduction, and long life.
LEDSMD is known for its high light efficiency. Light efficiency is a measure of how efficiently a light source can convert electrical energy into visible light, and LEDSMD achieves more compact and efficient photoelectric conversion through its surface mount design. This enables LEDSMD to produce brighter light at relatively low power, providing a solid foundation for the energy-saving operation of the lighting system.
LEDSMD has excellent color reproduction. In many application scenarios, the restoration of the true color of objects is crucial, especially in fields such as commercial lighting and art display. Through its unique luminescence principle, LEDSMD realizes a high color temperature light source, which can accurately restore the original color of objects and provide users with a more realistic and comfortable visual experience.
An advantage that cannot be ignored is the low light attenuation characteristics of LEDSMD. During long-term use, some traditional light sources may experience light attenuation, causing the light intensity to gradually weaken. Through its advanced technology, LEDSMD effectively reduces the speed of light attenuation, allowing it to maintain a relatively stable brightness during its service life, extending the service life of the lighting system.
Low energy consumption is one of the core concepts of green lighting, and LEDSMD significantly reduces energy demand through efficient photoelectric conversion and low power consumption design. This not only reduces energy consumption, but also helps reduce the environmental impact on the carbon footprint, in line with the concept of sustainable development.
Traditional light sources may need to be replaced in a relatively short period of time, while LEDSMDs have a relatively long life, reducing the frequency of light source replacement and improving the reliability and stability of the entire lighting system. This not only reduces maintenance costs, but also reduces the amount of waste lamps to be processed, further promoting the development of green and environmentally friendly lighting.
