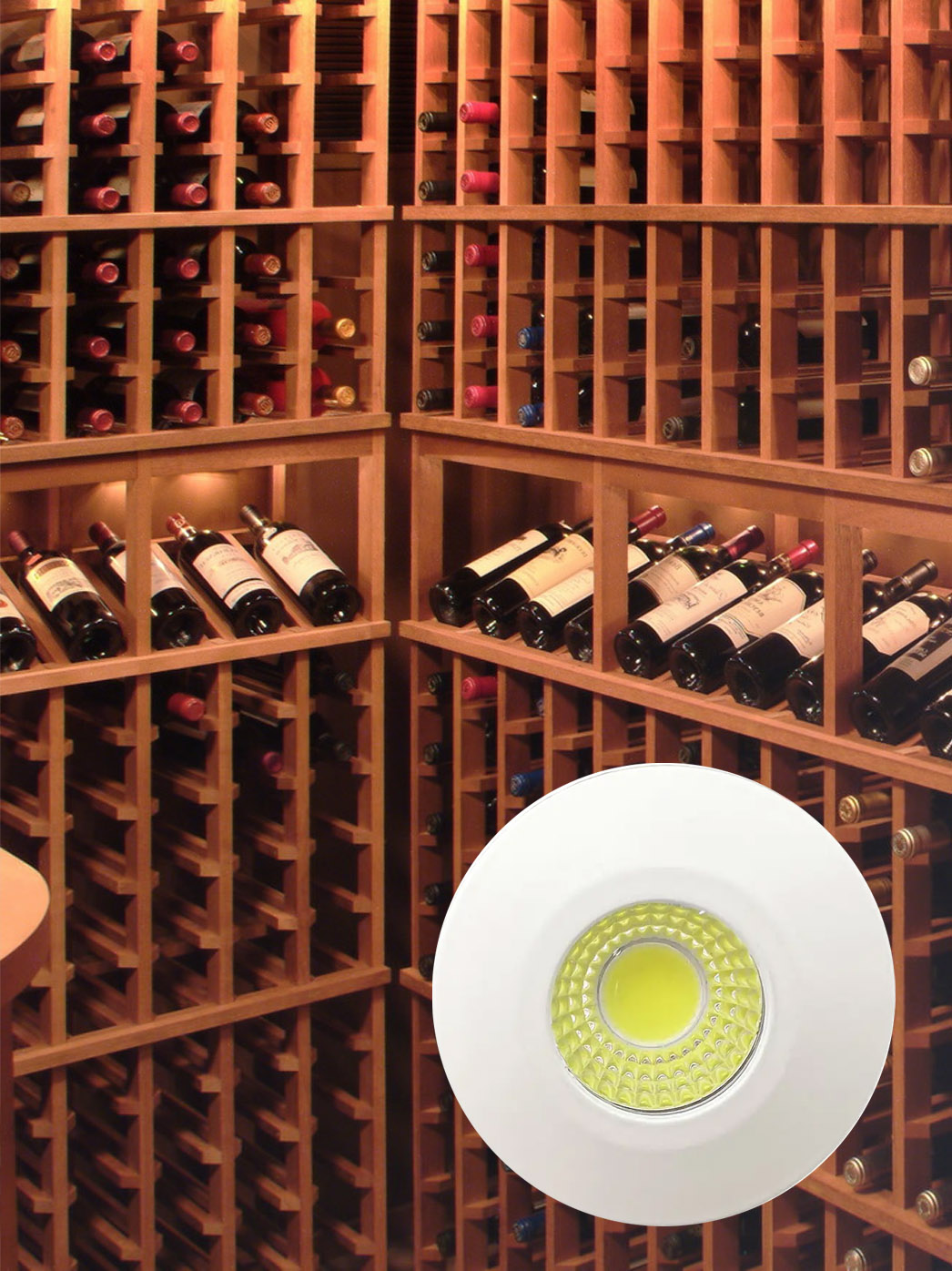

Applicable places: Lighting for cabinets, jewelry, wine cabinets,Indoor ceiling etc.
Voltage(V):220-240V
Opening angle (°):24°
Led:cob
Rai:80
IP:20
PF:>0.5
LIGHT EFFICIENCY (lm/W: 80Lm/w)
Material:Aluminum
Item No. | Colour Temperature | Watt (W)(85%) |
LED COB | Beam angle | Cut size | SIZE (mm) |
Material | Carton/pcs | Master size |
L*W*H | |||||||||

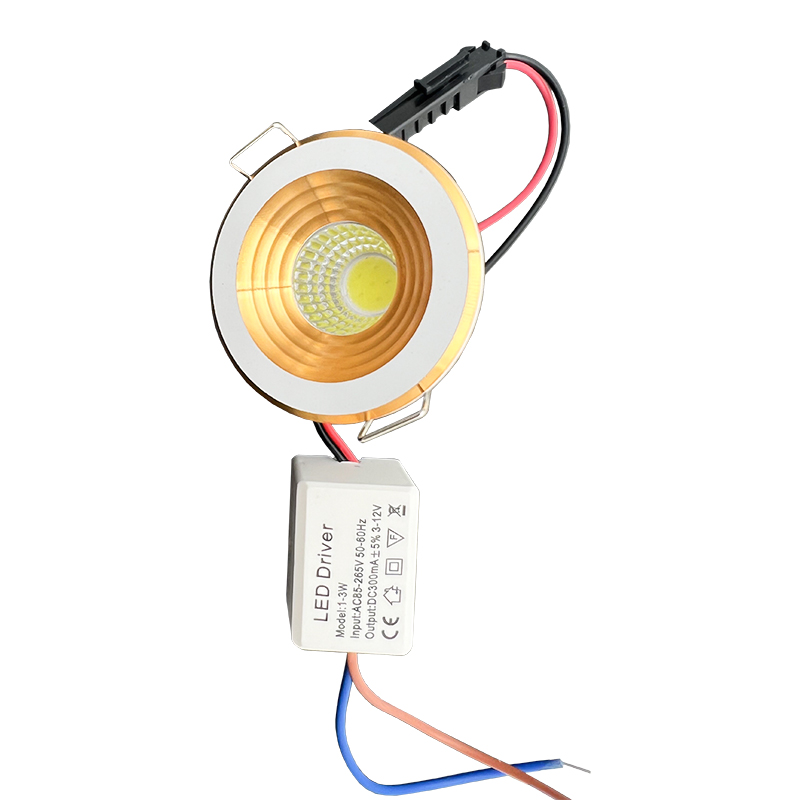

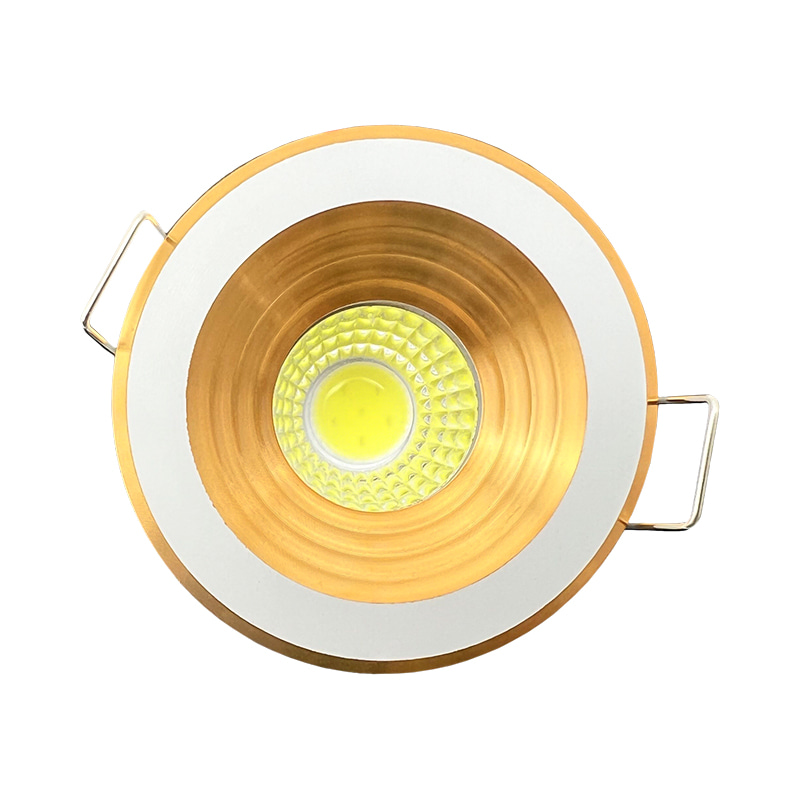

ON-MSR05 | 2700K 4000K 6500K CCT 3Colors |
3w | 1PCS | 24° | 35mm | Φ48*H22mm | Aluminum | 200 | 68*54*68CM |

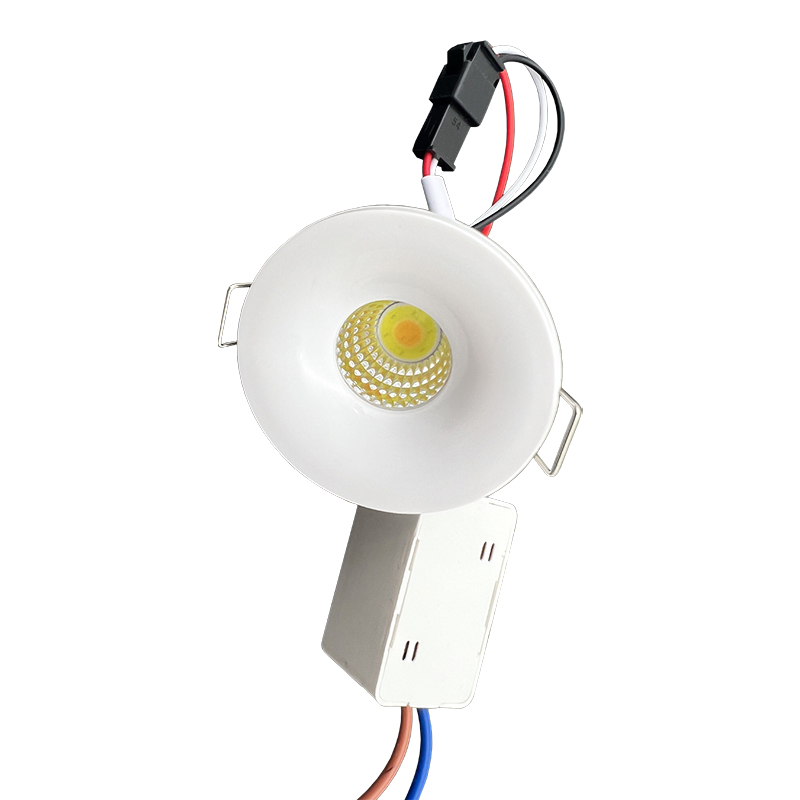

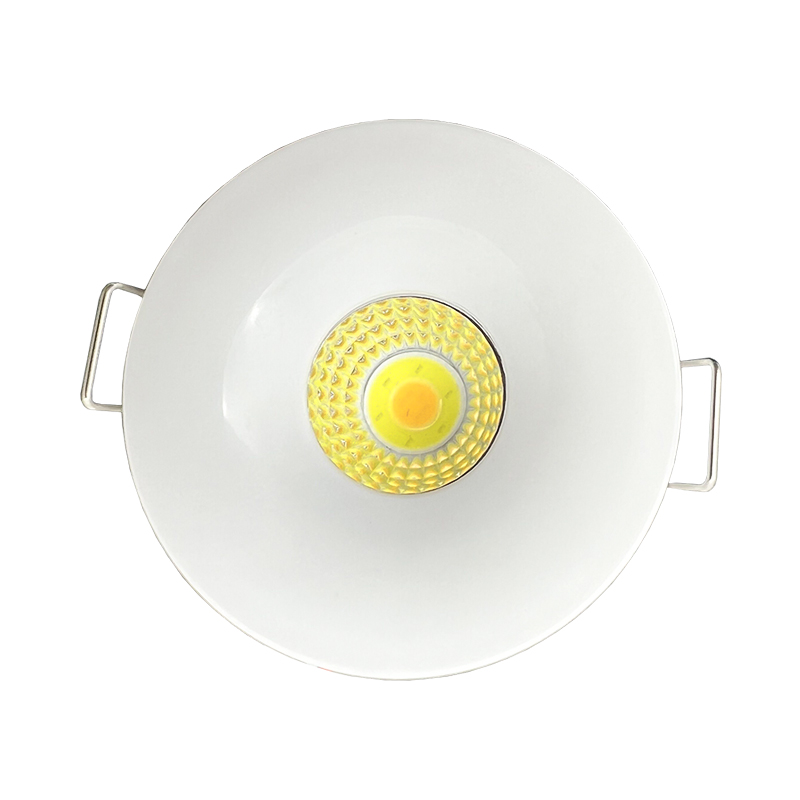

ON-MSR06 | 2700K 4000K 6500K CCT 3Colors |
3w | 1PCS | 24° | 35mm | Φ48*H22mm | Aluminum+PC | 200 | 68*54*68CM |

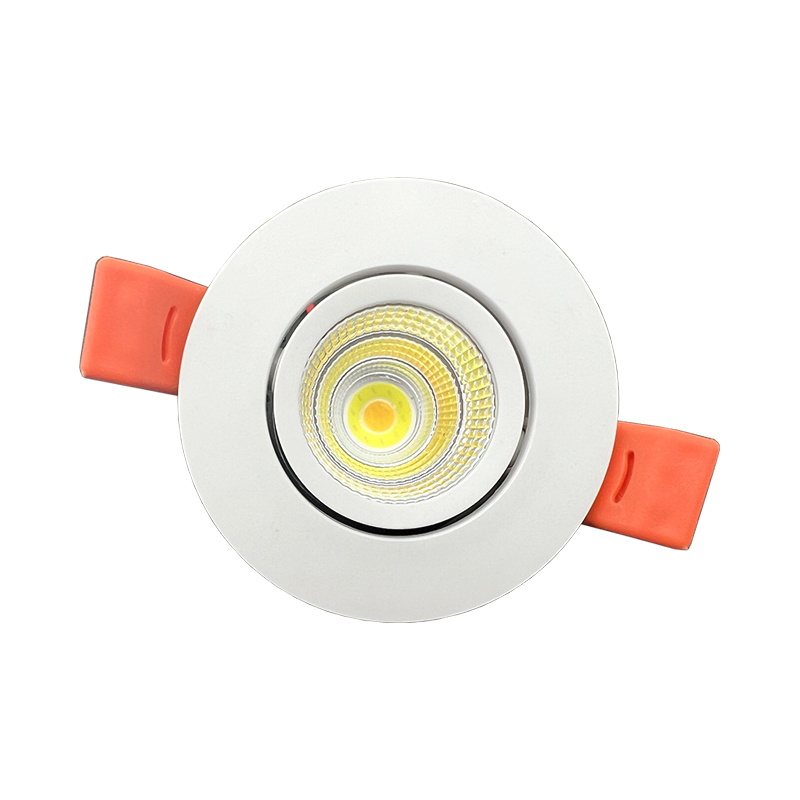

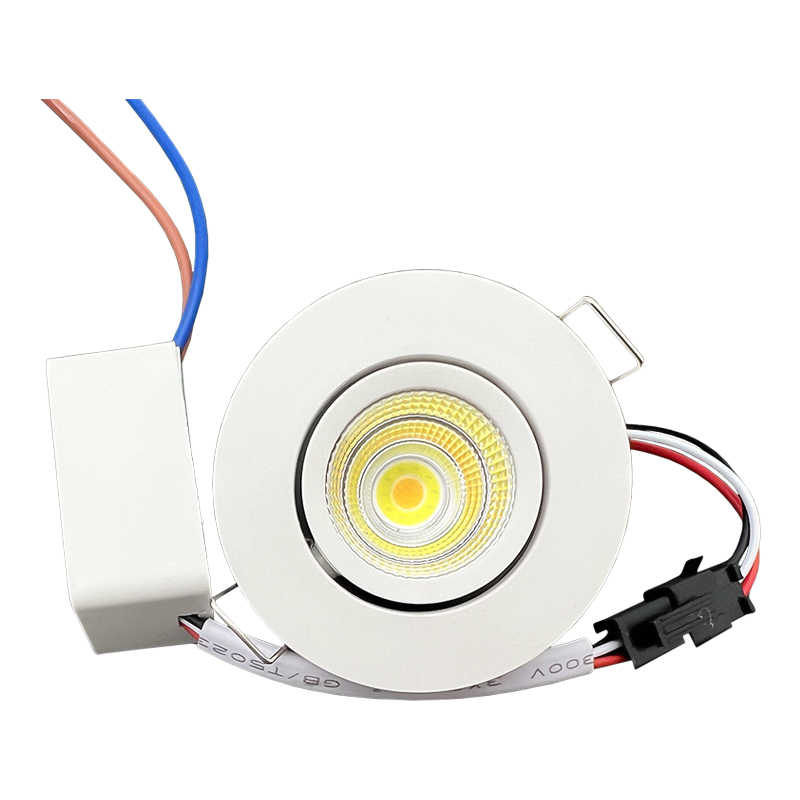

ON-MSR07 | 2700K 4000K 6500K CCT 3Colors |
3w | 1PCS | 24° | 45mm | Φ52*H22mm | Aluminum+PC | 200 | 68*54*68CM |

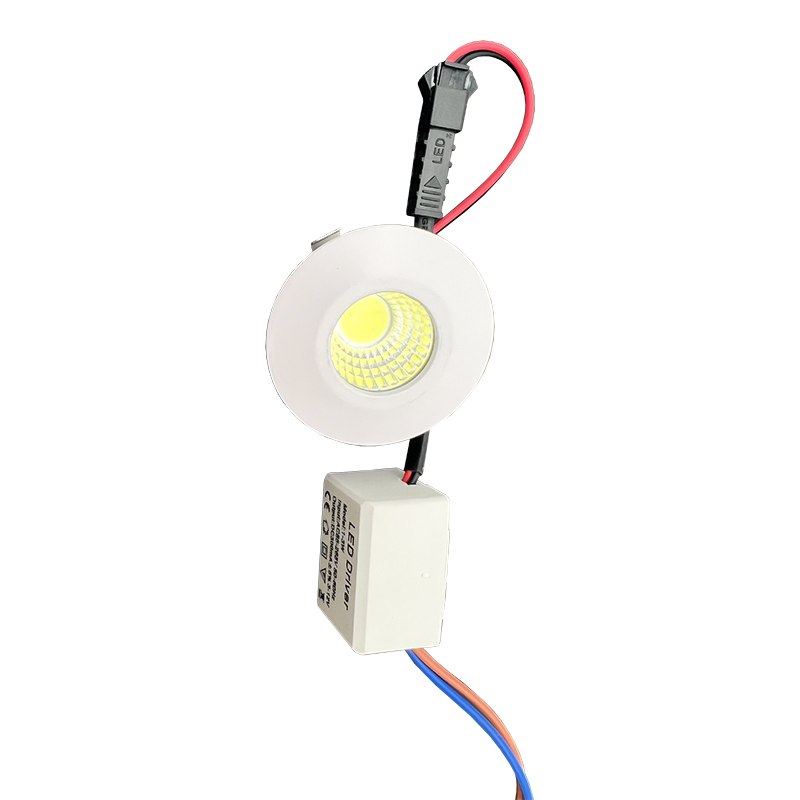

ON-MSR08 | 2700K 4000K 6500K CCT 3Colors |
3w | 1PCS | 24° | 30mm | Φ40*H25mm | PA+PC | 200 | 68*54*68CM |
We are a professional China 3w Aluminum Mini Downlight Suppliers and Wholesale 3w Aluminum Mini Downlight Factory. Our products have been exported to many countries from Europe to South America, Middle East, Africa and Southeast Asia, and we hope to sell to all over the world in the future.Welcome friends from all walks of life to visit our factory, guidance and business negotiations.
