Product Introduction:
●The shell is made of PC+alloy plastic+aluminum, with high strength; Surface resistance to high voltage, anti-static and safety regulations, corrosion resistance.
●The LEDSMD light source is selected, which has high light efficiency, high color rendering, low light attenuation, and low energy consumption. According to customer needs, variable light, flicker light, neutral light, and white light can be controlled through a dial switch to reduce customer inventory.
●Scientific lighting design, suitable for small area floodlighting.
●The dual chamber integrated design facilitates on-site installation and maintenance, simplifying on-site wiring.
●Scientific sealing structure design, dustproof performance.
●The selected power module has short-circuit, overvoltage, and overcurrent protection functions.
●The unique heat dissipation and ventilation method adopts conductive heat dissipation, which improves the service life of the components inside the electrical box.
●Angle: Adjustable angle

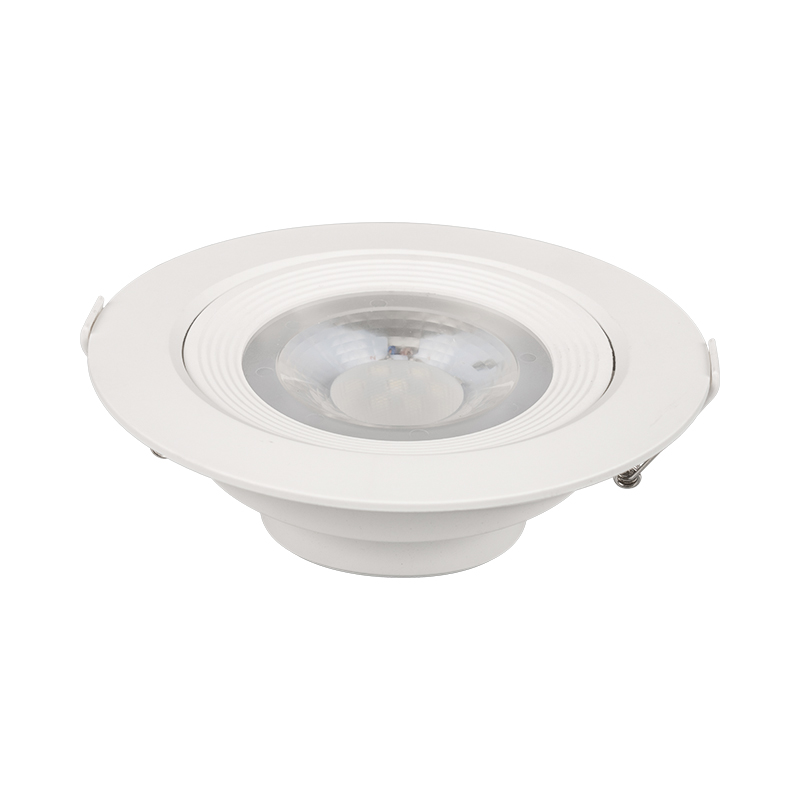

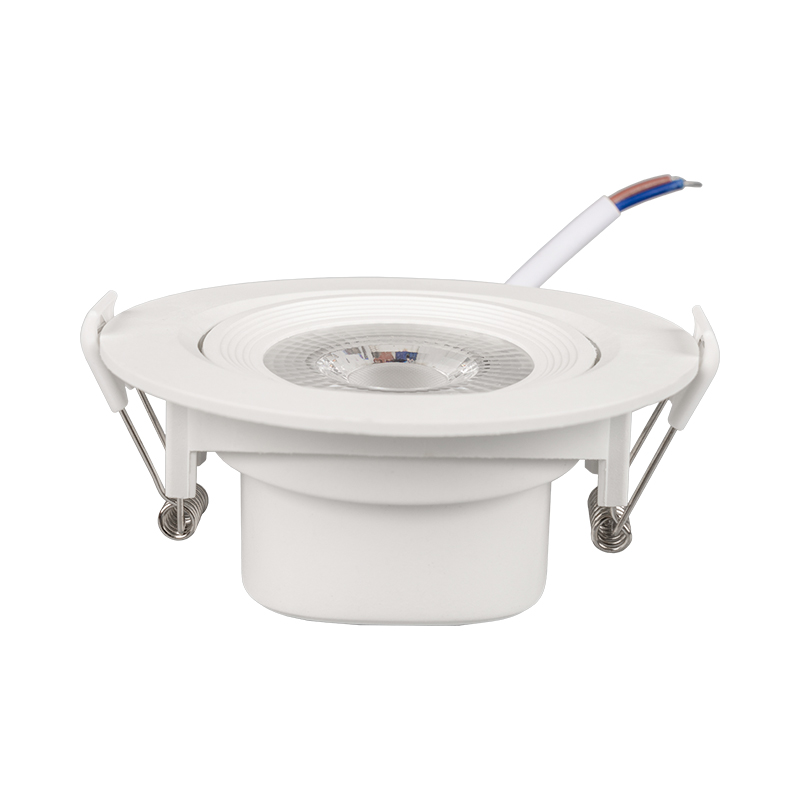

Spot downlight is suitable for indoor home decoration: lighting in restaurants, living rooms, corridors, shopping malls, hotels, KTVs, schools, non main lighting design scenes, and other places.
Rated voltage: 127-240V
Luminous angle: 38 °
Power: 3W, 5W, 7W, 9W, 12W
IP: 20
Item No. | Colour Temperature | Voltage(V) But CE | Watt (W)(85%) |
Luminous Flux(lm) | CRI | PF | Beam angle | Hole size | SIZE (mm) |
Material | Color Box | Loadability | Carton size(CM) | Notes | ||
Length | Width | Height | ||||||||||||||
ON-SP001-2 | 2700-6500K | AC100-240V 50/60Hz |
Round 3W(Short) | 80LM/W | 80 | 0.5 | 38° | 55-60mm | Φ70*30MM | All-plastic | 80*45*75MM | 100 | 42 | 24.5 | 32 | The surface is painted in gold, silver, black for+0.6 yuan, and chrome plated for 1.8 yuan. |
ON-SP002-1 | 2700-6500K | AC100-240V 50/60Hz |
Round 5W(Short) | 80LM/W | 80 | 0.5 | 38° | 70-75mm | Φ90*30MM | All-plastic | 100*45*90MM | 100 | 52 | 24.5 | 38 | |
ON-SP002-2 | 2700-6500K | AC100-240V 50/60Hz |
Round 7W(Short) | 80LM/W | 80 | 0.5 | 38° | 70-75mm | Φ90*30MM | All-plastic | 100*45*90MM | 100 | 52 | 24.5 | 38 | |
ON-SP004 | 2700-6500K | AC100-240V 50/60Hz |
Round 7W (Large shell and short version) | 80LM/W | 80 | 0.5 | 60° | 90mm | Φ108*30MM | Plastic+Aluminum | ||||||
ON-SP004 | 2700-6500K | AC100-240V 50/60Hz |
Round 9W | 80LM/W | 80 | 0.5 | 60° | 90mm | Φ108*30MM | Plastic+Aluminum | 113*45*108MM | 50 | 56 | 24.5 | 24.1 | |
ON-SP005 | 2700-6500K | AC100-240V 50/60Hz |
Round 12W | 80LM/W | 80 | 0.5 | 60° | 120mm | Φ138*42MM | Plastic+Aluminum | ||||||
ON-SP001 | 2700-6500K | AC100-240V 50/60Hz |
Round 3W | 80LM/W | 80 | 0.5 | 38° | 55-60mm | Φ70*42MM | All-plastic | 80*50*70MM | 100 | 42 | 27 | 30 | |
ON-SP002 | 2700-6500K | AC100-240V 50/60Hz |
Round 5W | 80LM/W | 80 | 0.5 | 38° | 70-75mm | Φ90*42MM | All-plastic | 100*50*90MM | 100 | 52 | 27 | 38 | |
ON-SP003 | 2700-6500K | AC100-240V 50/60Hz |
Round 7W | 80LM/W | 80 | 0.5 | 38° | 70-75mm | Φ90*42MM | All-plastic | 100*50*90MM | 100 | 52 | 27 | 38 | |
ON-SP004 | 2700-6500K | AC100-240V 50/60Hz |
Round 9W | 80LM/W | 80 | 0.5 | 60° | 90mm | Φ108*41MM | 113*50*110MM | 50 | 56 | 27 | 24.5 | ||
ON-SP005 | 2700-6500K | AC100-240V 50/60Hz |
Round 12W | 80LM/W | 80 | 0.5 | 60° | 120mm | Φ138*42MM | Plastic+Aluminum | 143*50*138MM | 50 | 71 | 27 | 30.6 |
We are a professional China Round plastic Aluminum recessed led spotlight Suppliers and Wholesale Round plastic Aluminum recessed led spotlight Factory. Our products have been exported to many countries from Europe to South America, Middle East, Africa and Southeast Asia, and we hope to sell to all over the world in the future.Welcome friends from all walks of life to visit our factory, guidance and business negotiations.
